Toilet Accessories Flush Valve Toilet tank Fittings for One Piece Toilets
Key attributes
| Brand Name | ALLWELL |
| Model Number | A003B001 |
| Flush Valve Type | Hand Control |
| Material | ABS/Plastic |
| Flush type | Adjustable Height Dual Flush |
| Color | White+blue |
| Installation | Floor Mount Toilet |
| Height | 28 Cm |

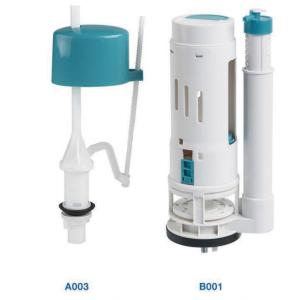

ALLWELL Premium Toilet Tank Fittings - Models A003 & B001
Product Overview
Professional flush valve systems designed for one-piece toilets, featuring adjustable height (200-280mm) and certified to CE, CUPC, SASO and Malaysia A Mark standards.
Key Features
Model A003 (Fill Valve)
- Pressure-compensated needle valve
- 200-280mm height adjustable
- Quick-stop water shutoff
- Anti-siphon CL line
Model B001 (Flush Valve)
- Dual flush mechanism (3L/6L)
- Universal mounting system
- Silent operation (<40dB)
- Easy-clean design
Technical Specifications
- Material: High-grade ABS polymer
- Working pressure: 0.05-0.8MPa
- Temperature range: 1-60°C
- Certifications: CE/CUPC/SASO/A Mark
Installation
1. Adjust height using sliding mechanism
2. Secure with locking clip
3. Connect water supply line
4. Test flush operation
FAQ:
Adjustment
Q: How to set proper water level?
A: Slide the float to desired position between 200-280mm and lock the clip.
Maintenance
Q: Cleaning frequency?
A: Inspect every 6 months, clean filters as needed.
Certifications
Q: What standards are met?
A: Certified to CE (EU), CUPC (US), SASO (Saudi) and Malaysia A Mark.
Ordering
Q: Minimum order quantity?
A: Available in single units or bulk orders (50+ for discounts).
Package Contents
- A003 fill valve assembly
- B001 flush valve
- Mounting hardware
- Installation guide
Quality Assurance
- 2-year warranty
- Pressure tested
